K8s Architecture

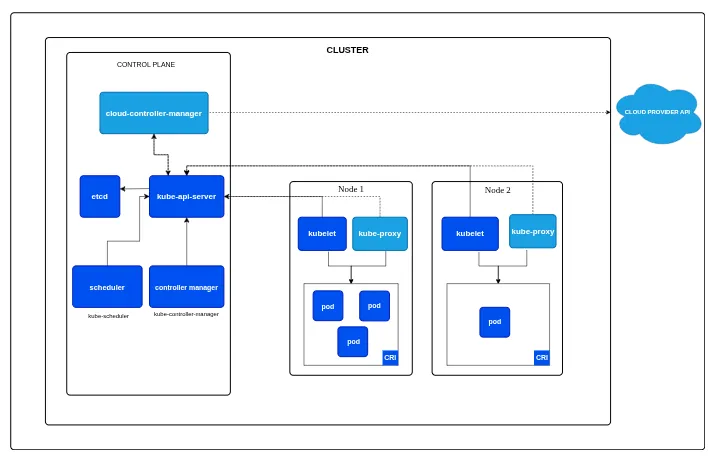

• K8s Architecture consist of two parts, the CONTROL PLANE (master) and the WORKER NODE (slave)
• control plane makes global decisions about the cluster and used to manage the whole kubernetes environment
• worker nodes are worker nodes that work to run the work, basically their goal is to run the required workload
• if control plane is brain then worker node is basically muscle
• both consist of different set of components.

CONTROL PLANE

• control plane makes global decisions about cluster like scheduling, detecting changes in cluster, keeping everything in desired state etc
• it consists of 5 components

1. KUBE-API SERVER

• kube-api server exposes the kubernetes api which is front end for the control plane, the only open door for communication
• every component and we all talk directly to api server, be it any kubectl command or any component reporting their status
• it does not store any data, its stateless. every data is stored in etcd
• it can be scaled horizontally (running multiple instances) for HA
• there are 3A of api server, Authentication, Authorization, Admission control
• Authentication simply verifies whether the client is authorized to access through certificates or tokens
• Authorization checks if the authenticated identity has permission for the requested action through RBAC ,etc
• Admission control decides whether this request is to be modified or rejected
• mutating admission control can modify any request like injecting sidecars or adding default resource quotas etc
• validating admission control can allow or reject the request based on the specification like some image is not allowed
• so even if you are allowed to run a pod, if you are running a banned image defined in validating admission control, your request fails

2. ETCD

• its the single source of truth of kubernetes. highly available, consistent key value store
• it stores all the cluster data like nodes, running pods, secrets, etc everything is stored here
• all kubernetes objects like pods, deployments, services, configmaps, secrets, current and desired state of all resources, Persistent volume claims, network policies, rbac rules etc are stored in etcd
• other data like pod logs or metric data etc are not stored in etcd
• etcd uses the Raft consensus algorithm

3. KUBE-SCHEDULER

• its sole purpose is to just find the best worker node for a pod to run on
• it does not start the pod, it just decides the best node for a pod using algorithms and conditions
• the decision involves 2 step where it filter out the feasible nodes which meets the requirement to run a pod
• after that it scores all the feasible nodes to find the most optimal node for the pod
• Filtering is done based on conditions defined in manifest like NodeSelector, NodeAffinity, Taints/Tolerations, Resources, Volume, Port, PodAffinity/Anti-Affinity, once done it outputs a list of feasible nodes
• Scoring is done via weighted scoring system where multiple plugins result in a final score of feasible nodes like LeastAllocated, ImageLocality etc factors.
• when there is a tie between multiple nodes score, it simply chooses the lowest alphabetical node name

4. KUBE-CONTROLLER-MANAGER

• it is like a manager who watches specific resource types and ensure that current state matches the desired state

• it runs as a single binary but contains multiple independent controllers

• this simply gives the k8s its self-healing properties

• you can create a standalone pod without this but you can’t do main things without it

• Deployment Controller manage deployments and their rollout strategies

• ReplicaSet Controller ensure the correct number of pod replicas are running

• StatefulSet Controller manage stateful applications with stable networking and storage

• DaemonSet Controller ensures every node run the specified pod

• Node Controller monitor node health and manage node lifecycle like node monitoring and eviction

• Endpoints Controller manages endpoints objects which links services to pods

• Service Account & Token Controllers manages service accounts and their authentication token

• Persistent Volume Controller bind persistent volume claims to persistent volumes

• Namespace Controller manages namespace creation and deletion

• CronJob Controller manage cronjob objects

5. CLOUD-CONTROLLER-MANAGER

• before this controller, cloud specific code was mixed into core kubernetes components

• now its all clean, all cloud related code is moved into this separate component

• this controller interact with cloud providers for cloud specific resources like load balancers, storages etc

• these controllers differ from provider to provider but these are some basic ones

• Node Controller Cloud version of node controller which uses cloud provider info to manage node

• Route Controller configures routing in cloud networking

• Service Controller Manage cloud load balancers

WORKER NODE

• each worker node runs several key components that allow it to receive work from control plane

1. KUBELET

• its the primary node agent that runs on every worker node, responsible for everything that runs on that specific node

• its the only component that directly communicates with both the control plane and container runtime

• it watches API server for Pods assigned to its node

• it instruct container runtime to pull images and start container

• monitor container health and restart them if they fail

• executes postStart/postStop hooks

• reports pod status back to API server

• it also perform Node Registration and reporting

• it register the node with API server when it starts

• continuously reports node status like (capacity, health) and node level healthcheck

• it also does container health checks (liveness, readiness, startup probe)

2. KUBE-PROXY

• it works as a network proxy and load balancer
• it maintains the iptables or ipvs rules for service routing
• it also load balance the traffic across pod endpoints

3. CONTAINER RUNTIME

• container runtime are actual container engine that is responsible for running the containers like containerd, crio
• container runtime uses runc at low level to create the actual container
• docker used to be a hardcoded runtime in old days which later got removed from k8s architecture
• it manages pulling and storing the images, create, start, stop the containers
• responsible for resource isolation using cgroups and linux namespaces

4. CONTAINER RUNTIME INTERFACE

• CRI simply sits between the k8s and container runtime
• it allows container runtime and k8s communicate each other through CRI
• it simply allows k8s to have a pluggable architecture where you have multiple container runtime which you can choose
• these runtimes uses the CRI api which standardize the way runtime communicates to k8s

5. CONTAINER NETWORK & CNI

• CNI is simply standard way for container networking, it defines how the networking is handled in k8s
• provides the pluggable architecture for pure freedom of network runtimes like flannel, cilium, calico etc
• different network runtimes have different features
• Container networking is simply the implementation of CNI

6. CONTAINER STORAGE & CSI

• this is the standard created by kubernetes to manage storage
• it defines how storage plugins should work like how CNI does for networking
• CSI allows k8s to use anything as storage system be it cloud, on-prem etc without modifying k8s itself

THE ULTIMATE WORKFLOW

• so how all this fits together, lets see what happens when you run
• kubectl apply -f deployment.yaml

1. kubectl process the yaml

• parse the yaml file
• validates the schema
• converts it to json
• sends HTTP POST to API server

2. API Server receives request

• api server does the AAA (authentication, authorization, admission control)
• if it all passes, api server stores this deployment object in ectd
• once write is successful, etcd sends a succesfull to api server

3. Deployment controller wakes up

• deployment controller watches the api server, it sees the new deployment
• calculates the replicas needed for this deployment
• creates replicaset object via api server
• api server stores replicaset in etcd

4. ReplicaSet controller activates

• replicaset watches the api server, sees the need of replicas defined by deployment controller
• it calculates like whats the current pods and desired pods so how many pods we need to create
• it creates 3 pod object without any nodename via api server
• api server stores pods in etcd

5. kube-scheduler assigns nodes

• scheduler watches api server, sees 3 pods with no nodename
• for each pod, it will do the filtering and scoring magic to give the nodename
• scheduler patches the pods without any nodename to the selected optimal nodes
• api server now patch up this change in etcd

6. Kubelet detect the assigned pods

• kubelets of selected nodes sees pod assigned to their node
• it validates the pod spec
• kubectl also will check if it can run the pod like resources ,volumes etc

7. CRI comes

• kubelet calls the CRI and cri calls container runtime

• kubelet tells CRI what needs to be done like pulling image, create container, start container etc

• runtime creates container by calling runc

• runc creates network namespace, pid namespace, cgroups, overlayfs etc

8. CNI comes

• kubelet calls CNI for giving pods networking capibilites
• cni plugin creates netowork namespace, veth pair, connect pods to bridges
• assign IP and sets up routes
• pod now have network connectivity

9. CSI comes

• kubelet calls csi driver
• csi driver attaches storage disk, mount filesystem, mount to pods path
• now volumes are available to containers

10. kubelet monitors and reports

• executes liveness, readiness, startup probes
• monitors container resource usage
• keep reporting the pod status to api server
• api server stores these status in etcd

11. kube-proxy sets up networking

• kube-proxy sees new pods and if theres a matching service then it updaes iptables rules
• endpoints controller watches pods and svc
• endpoint controller sees new pods matching service selector
• it updates the endpoint object with pod ip
• api server stores in etcd

12. controllers maintain state

• controllers like deployment controller, replicaset controller, node controller, kubelet etc continously monitors and reports their respective components
• when there is a shift in desired state, these controllers self-heal their repective elments
